SIMADRE DIGITAL TITAN-5200GP PILOT ARC 110/220V 50AMP PLASMA CUTTER 200A TIG ARC MMA WELDER
SIMADRE HIGH QUALITY TRULY DIGITAL TITAN-5200GP DUAL 110V/220V PILOT ARC 50 AMP PLASAM CUTTER 200 AMP TIG/MMA/ARC WELDER
WITH HIGH-PERFORMANCE PILOT ARC CUTTING TORCH and TIG WELDING TORCH!
THIS GREAT DIGITAL 3IN1 MACHINE ALSO COME WITH DIGITAL REMOTE FINGER CONTROLLER - ADJUST CURRENT AMP
High Quality Digital design from Simadre Techs LLC, 70% DUTY CYCLE
Pre-flow time can be adjusted
Innition current and slope time can be set
Peak current and basic current can be set under pulse
Slow down can be set and teh final ARC can be set after finish welding
Post flow time can be adjusted
2T, 4T is available
Machine can save the operation program and it is convenient to use the machine for the next usage. Automatic sensing of incoming power source voltage and frequency 120V/240V-50/60HZ (functions between 90 & 260 volts.)
Works in both 50 and 60 Hz with operating air pressure of 70 psi @ 4 cfm (0.4 Mpa).
Max diameter of rod 5.0 mm
Machine is equipped with a large cooling fan and is thermostatically protected for a longer life span.
Advanced inverter technology means high cutting and welding performance.
Plasma Cutter is 3/4" rated with 1/2" clean cut
Tig Welder has a 5/16" weld thickness
Arc/MMA Welder has a 3/16" weld thickness
CE, CCC, CSA and ISO-9001 certification Specifications:
Input voltage
AC 110/230±15% 50/60Hz
Input Power Capacity 4.8 kva
No-load loss(W) 40
Duty cycle (%) 70
Power factor 0.93
Efficiency (%) 85
TIG MMM CUT
Rated Input Power(A)
14.7 23.7 28.7
Rated output current
200A 200A 50A
Current range
10-200 10-200 10-50
Rated output voltage(V)
18 40 29
No –load loss(w)
40 98 40
Cut thickness(mm)
1-16
Arc-leadin
HF TOUCH HF
Air flow(L/min)
2-5L/min - 80 L/min
Unit size: 21x8x11"
Unit weight: 36 lbs
Package weight: 50 lbs
Package size: 23x12x17"
It comes with:
Pilot arc cutting torch
Tig Welding Torch (with long and short caps)

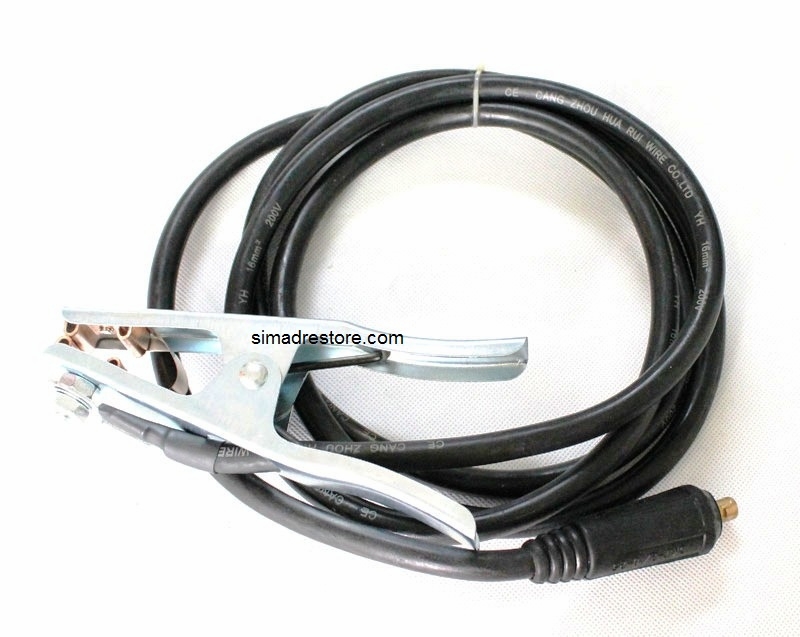

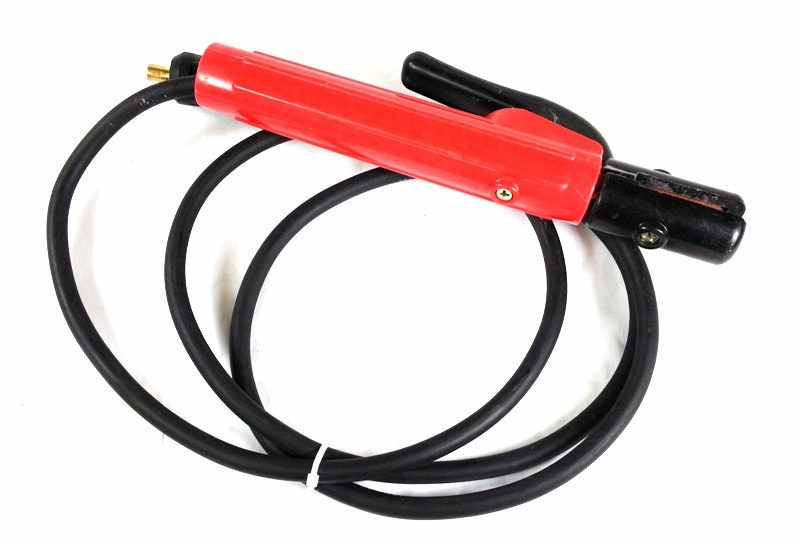

Ground cable with clamp Stick (ARC) Holder
Initial Consumables
User Manual
Digital Remote Finger Control
You shall provide 60~70 psi air supply, 110v or 220v power plug
You shall provide argon regulator, tank for tig welding
