Plasma Cutter Simadre 60Rx 60 Amp IGBT 110/220V 20mm Max Cut
SIMADRE® 60RX 60 AMP IGBT 110V/220V DUAL VOLTAGE PLASMA CUTTER
POWER RATED 60A TORCH & BASIC CUTTING CONSUMABLES
This unit includes a One Year Warranty
Advanced inverter IGBT plasma cutter. Circuit protection against over current,over voltage and over heat. Suitable for cutting stainless steel, copper, iron, aluminum, etc. Simple operation, smooth cutting surface. Intensive arc, high cutting speed, narrow and smooth kerf, continuous current regulation, little distortion of work-piece, safe and reliable. 20mm Max Cut, 15mm Clean Cut
Specifications: Model
CUT-60RX
Input voltage
Single-phase AC 110/220 V ± 10% 50/60Hz
No-load Voltage (V)
320V
Output current range (A)
10-60
Rated output voltage (V)
104V
Loss for no load (W)
40
Efficiency (%)
85
Power factor
0.93
Arcing method
Contact arcing
Insulation Level
F
Shell Protection Level
IP21S
Dimension (L×W×H)mm
375x155×295
Weight (kg)
8
Package Includes: · Plasma Cutter - Inverter Unit
· Ground Cable & Ground Clamp

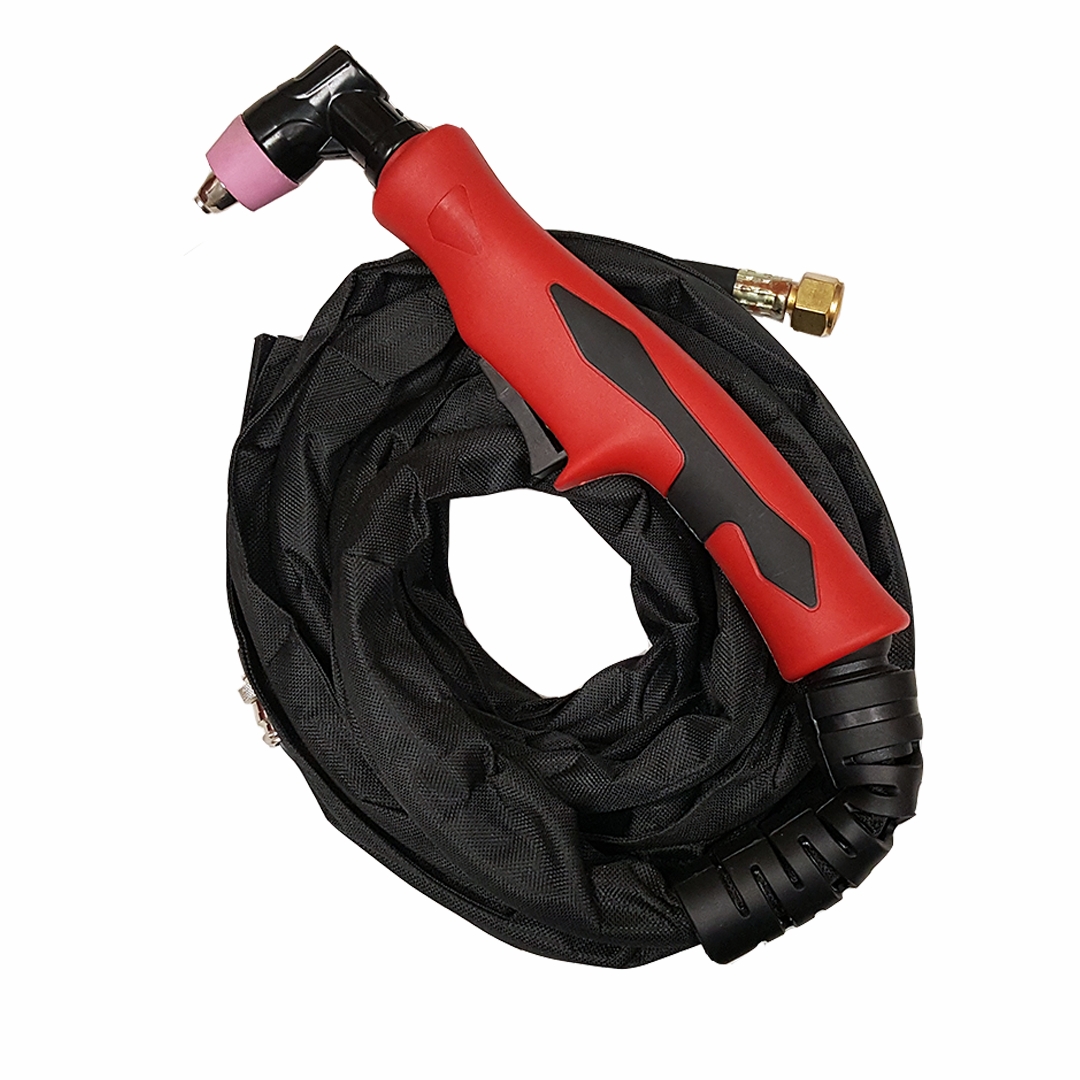

· Power Cutting Torch with Hose
· Basic Cutting Consumables

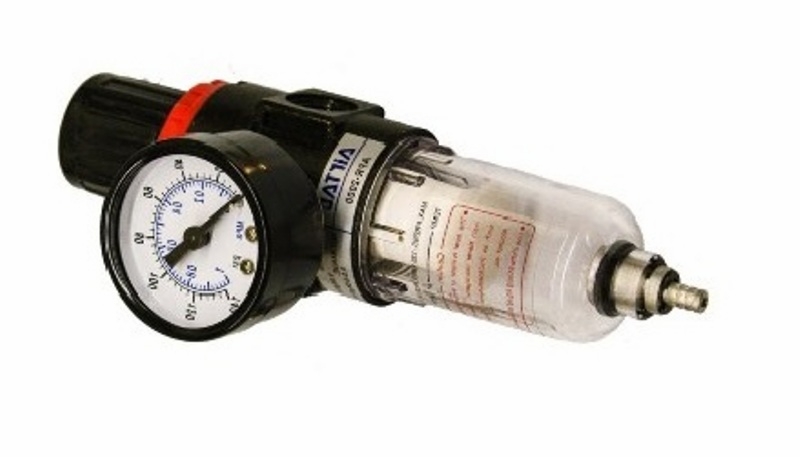

· Air Filter/Regulator
· Hose
· Clamps
· Mounting Bracket
· Owner Manual
Buyer must provide: · Air supply - 4.5 CFM @ 75 PSI
· 220 or 110 V AC power source & plug
Shipping to pr, ak, hi, guam and military stations outside usa will be charged extra per the location.
